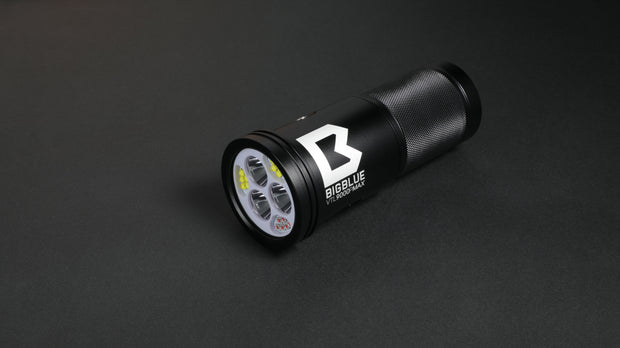

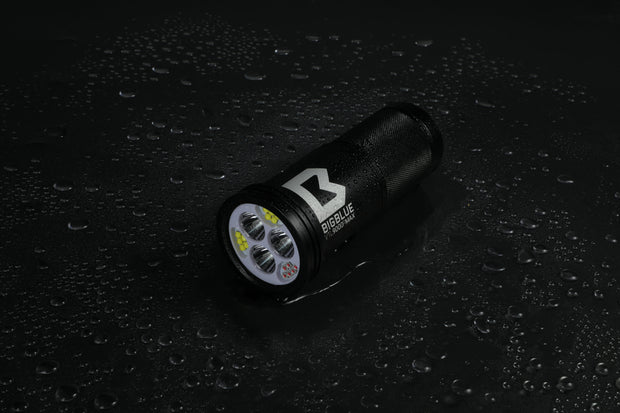

Bigblue VTL9000P-MAX Dive Light, 2900-Lumen 9° Spot

Name: Bigblue VTL9000P-MAX 9000-Lumen Dual-Beam Light with 2900-Lumen Spot
Brand: Bigblue Dive Lights
SKU: VTL9000P-MAX
Price: 979.99 USD
Availability: InStock

Bigblue VTL9000P-MAX 9000-Lumen Dual-Beam Light with 2900-Lumen Spot, in use underwater

Verified by our in-house dive instructors

60-Day Money Back Return Policy 60-Day Money
Back Return
Policy

Limited Warranty 2 year coverage Limited
Warranty 2
Year Coverage

Description

The Bigblue VTL9000P-MAX is a rechargeable dual-beam LED dive light for technical diving and underwater video. It keeps the compact VTL9000 body and puts more power into the spot.

The 9° narrow beam reaches 2900 lumens with a focused hotspot that improves visibility in low-visibility conditions, and it dims to 1450 or 725 lumens. The wide beam spreads 9000 lumens across an even 120° angle for video, with levels of 2250, 4500 and 9000 lumens. Six red LEDs add 500 lumens of red for low-impact light.

Power comes from a self-contained BATCELL18650X4 Li-ion rechargeable pack. Bigblue rates burn time at 3 hours on level III, 6 hours on level II and 12 hours on level I. The push-button switch has a battery indicator.

The body is anti-corrosive anodized aluminum with tempered optical glass, tested to 100 m. It’s the same 63 mm by 150.3 mm, 548 g package as the VTL9000P and VTL11000P. A yellow filter (FILYEL63), a soft Goodman glove, a 1-inch ball joint, a lanyard and a 7L dry bag come in the box.

VTL9000P-MAX light
Battery pack
Charger
1-inch ball joint
Yellow filter (FILYEL63)
Soft Goodman glove
Lanyard
7L outdoor dry bag
Two spare O-rings
Silicone lube
Owner’s manual

Get support from passionate diving experts dedicated to going the extra mile for you.

Troubleshooting a product issue
Finding the right setup for your dive
Installing components

(805) 967-4456 info@sbaquatics.com

Product Features

2900-lumen spot
The 9° narrow beam has three levels (725, 1450 and 2900 lumens) and a focused hotspot for low visibility.
9000-lumen wide beam
An even 120° beam for video, with three levels: 2250, 4500 and 9000 lumens.
Red mode for low-impact light
Six red LEDs give 500 lumens of red. Use it to approach subjects and set up shots without full white light.
Compact 63 mm body
548 g in air, with a self-contained BATCELL18650X4 pack and a battery indicator on the push-button switch.
Fluoro-ready with FDK63
Bigblue lists its FDK63 FluoroDive kit for the VTL9000P Max, so you can add fluoro dives later.

Which 63 mm VTL is right for you?

All three share the same 63 x 150.3 mm, 548 g body, the BATCELL18650X4 battery, a 120° wide beam and a 100 m rating.

VTL11000P

The most wide-beam light of the three. White only, with red and yellow filters in the box.

White only (red filter included)
11,000-lumen wide beam, four levels
1300-lumen 6° spot
2.5 to 25 hours burn time

VTL9000P-MAX

Trades some wide output for a much stronger, dimmable spot, with red built in.

White · Red (500 lumens)
9000-lumen wide beam, three levels
2900-lumen 9° spot, three levels
3 to 12 hours burn time

VTL9000P

The longest burn time of the three, with red built in.

White · Red (500 lumens)
9000-lumen wide beam, four levels
1300-lumen 6° spot
3 to 30 hours burn time

Is it right for you?

Who it’s for

Tech divers
Underwater videographers
Low-vis and wreck divers

Best for

Primary tech light
Low-visibility dives
Video and photo setup
Wreck diving

Power modes

Mode	Output	Burn time
Wide III	9000 lm	3 hrs
Wide II	4500 lm	6 hrs
Wide I	2250 lm	12 hrs
Spot III	2900 lm	—
Spot II	1450 lm	—
Spot I	725 lm	—
Red	500 lm	—

Burn times are Bigblue’s figures by level, shown on the wide beam. Bigblue doesn’t list separate burn times for spot or red.

Add-ons

Specifications

Output

Max output: 9000 lm
Modes: + Red
Light source: 13 x LED + 6 x XPE red LED
Wide beam output: 2250, 4500, 9000 lm
Spot beam output: 725, 1450, 2900 lm
Red mode output: 500 lm
Color temperature: 6500K

Beam

Beam angle: 9° & 120°
Wide beam: 120°
Spot beam: 9°

Power

Burn time: 3–12 hrs
Burn time by level: 3 hrs (III), 6 hrs (II), 12 hrs (I)
Battery: BATCELL18650X4 Li-ion pack, rechargeable
Switch: Push button with battery indicator

Build

Casing: Anodized aluminum alloy, anti-corrosive
Front glass: Tempered optical glass
Max depth: 100 m (328 ft) tested
Size: 63 x 150.3 mm (2.5 x 5.9 in)
Weight in air: 548 g (19.3 oz) with battery
Buoyancy in seawater: -203 g (-7.2 oz) with battery

Product Details

Shipping & Returns

Free standard shipping on orders over $50
Free 2-day shipping on orders over $300
Standard Ground delivery in 3–5 business days
Most orders process within 1 business day
Free returns within 60 days — buyer covers return shipping unless it's our error
Free return shipping on exchanges

Start a Return →

Questions? Email info@sbaquatics.com or see our full Shipping & Returns Policy.

Frequently Asked Questions?

How is it different from the VTL9000P?

The MAX has a stronger, dimmable spot: 2900 lumens at 9° with three levels, versus 1300 lumens at 6° on the VTL9000P. The VTL9000P has four wide levels and a longer burn time (3 to 30 hours vs 3 to 12). Body, battery, weight and the 500-lumen red mode are the same.

How long does it take to charge?

Bigblue suggests 2 to 3 hours for the BATCELL18650X4 pack.

Can I mount it on a camera rig?

Yes. A 1-inch ball joint comes in the box. Bigblue also lists its Goodman handle and Easy Release series as optional accessories.

Is there a canister version?

Yes. Bigblue also makes VTL9000P Max Backmount and Sidemount canister systems. This page is the handheld light with its own battery.

Can I use it for fluoro dives?

Yes, with Bigblue’s FDK63 FluoroDive kit, which Bigblue lists for the VTL9000P Max. It’s under Add-ons.
