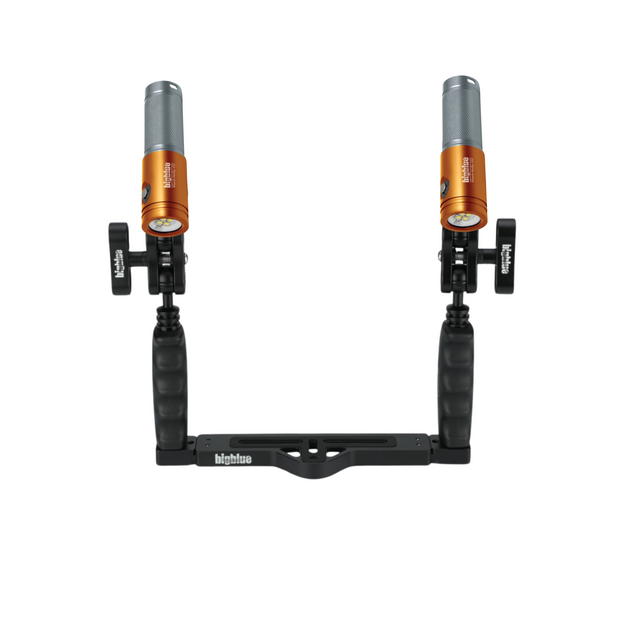

Bigblue Camera Tray Kit - AL2900XWP (2) + CLP02 (2) + Extendable Camera Tray

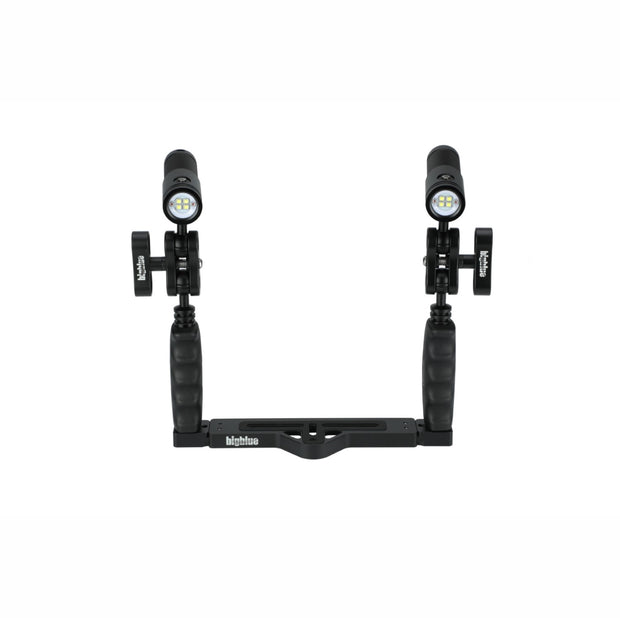

Bigblue’s Action Camera Tray Kit Set puts two video lights on one tray. You get two AL2900XWP lights, which Bigblue’s catalog calls the Black Molly VII, two CLIP-02 double clips and an extendable camera tray. Add your camera and housing, and you’re ready for reef video and stills.

Each light uses four LEDs to put out 2900 lumens of 6500K light in a 120° wide, evenly diffused beam. Two red LEDs add 150 lumens of low-impact light for focusing and night video. White runs on four levels, 2900, 1450, 725 and 290 lumens, for 2, 4, 8 and 20 hours. One push button with a battery indicator runs every mode.

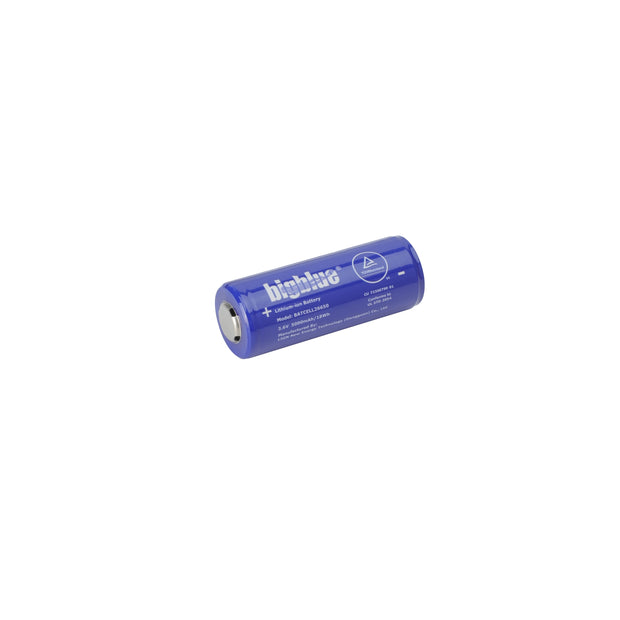

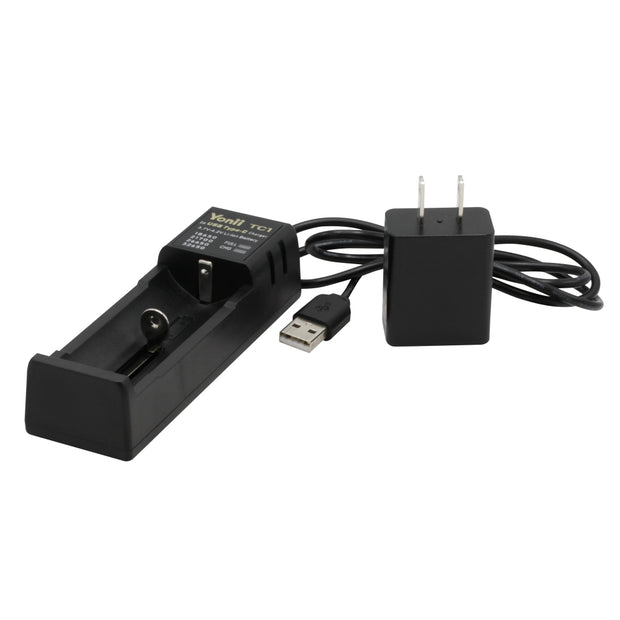

Each light has its own rechargeable 26650 Li-ion battery and USB charger. Bigblue suggests 5–6 hours for a full charge. The anodized aluminum bodies are tested to 100 m and weigh 218 g each with the battery.

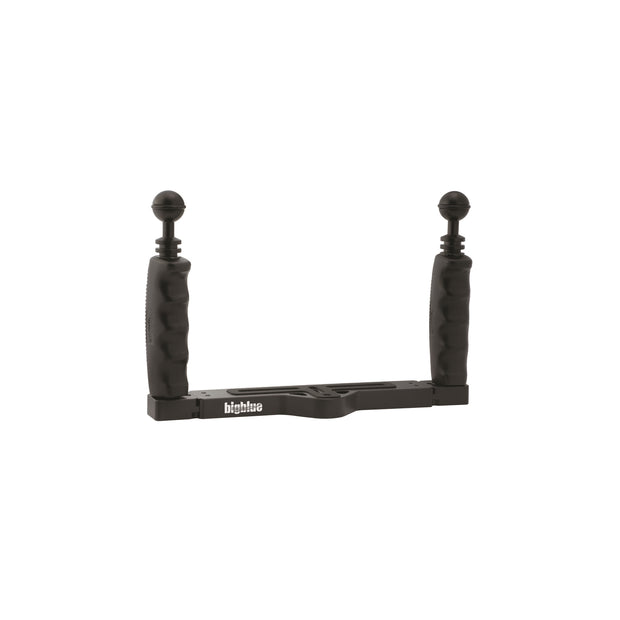

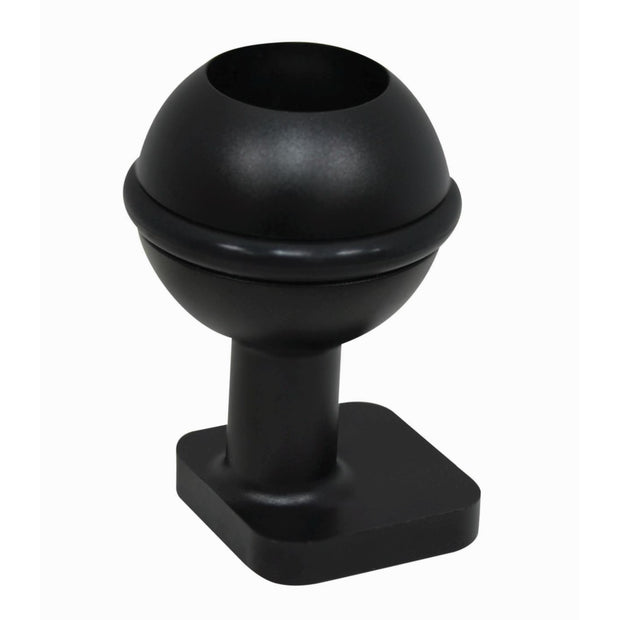

The tray has an aluminum base and handles, a neoprene grip on each handle and a 1-inch ball on top of each arm. It extends from 200 to 300 mm to suit different housings. A 1-inch ball mount goes on each light, and the double clips join the lights to the arms.

Bigblue designs its trays, arms and clips to work on their own or together, so this rig can grow with you. Choose both lights in Classic Black, or both in Burnt Orange and Gunmetal Silver.

Specifications
Kit
- Max output: 2 x 2900 lm
- Beam angle: 120° wide
- Burn time: 2–20 hrs
- Modes: + Red
- Lights in the kit: 2 x Black Molly VII (AL2900XWP)
- Light colors: Both Classic Black, or both Burnt Orange and Gunmetal Silver
- Camera and housing: Not included
- Bigblue category: Advanced photo and video

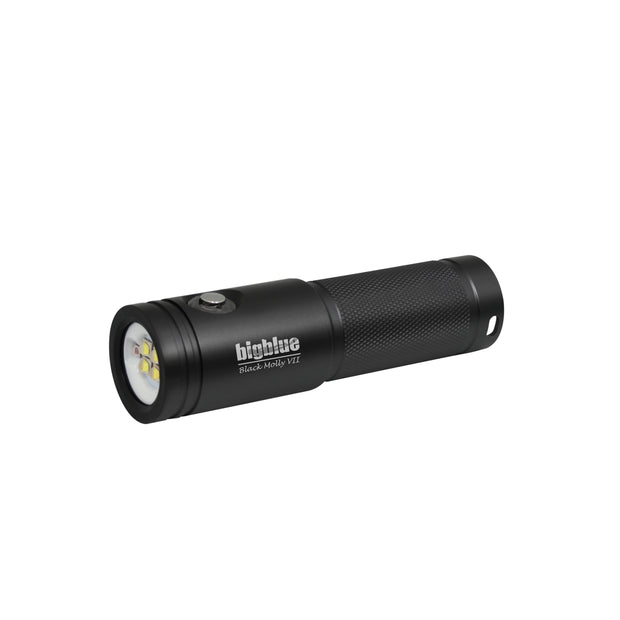

Black Molly VII (each light)
- Light source: 4 x XML LED + 2 x XPE red
- White levels: 2900 · 1450 · 725 · 290 lm
- Red mode: 150 lm
- Color temperature: 6500K
- Beam: 120° wide, evenly diffused
- Burn time by level: 2 · 4 · 8 · 20 hrs (level IV to I)
- Battery: 26650 Li-ion rechargeable
- Charger: USB charger
- Charge time: 5–6 hrs (Bigblue suggested)
- Switch: Push button with battery indicator
- Casing: Anodized aluminum alloy
- Front glass: Tempered optical glass
- Max depth: 100 m tested (328 ft)
- Size: Dia. 35.5 x L 126.8 mm (1.4 x 5.0 in)
- Weight in air: 218 g (7.7 oz) with battery
- Buoyancy in seawater: -105 g (-3.7 oz) with battery
- Light head: Modular Type II
Tray and clips
- Tray: Extendable camera tray (BBEXTENDCAMTRAY)
- Tray width: Extends 200–300 mm (7.9–11.8 in)
- Handles: Neoprene grip, 1-inch ball on top of each arm
- Base and handles: Aluminum

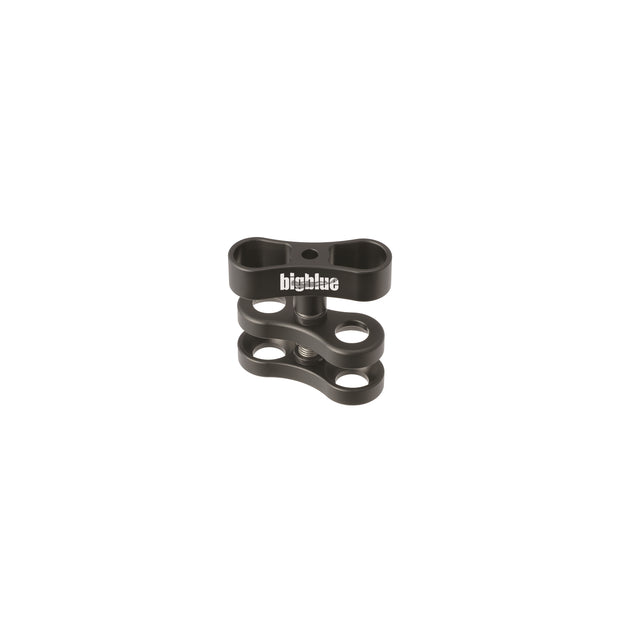

- Clips: 2 x CLIP-02 double clip, 64 mm (2.5 in) long
- Clip material: T6061 aluminum
