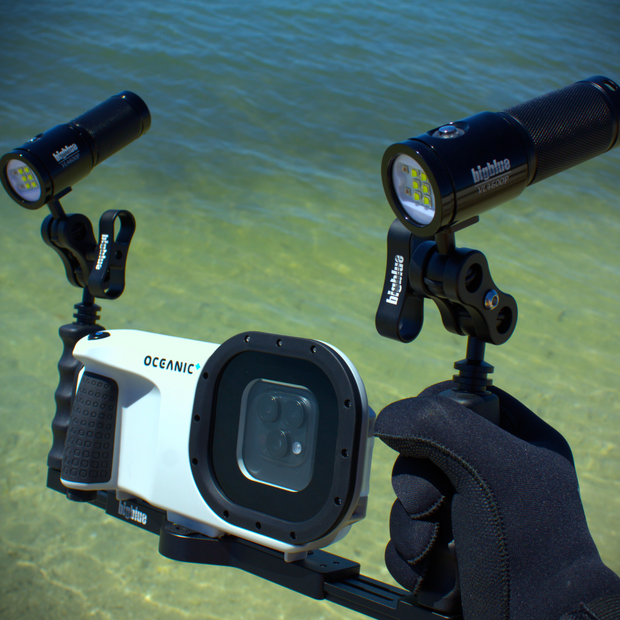

Bigblue Camera Tray Kit - VL4600P (2) + CLP02 (2) + Extendable Camera Tray

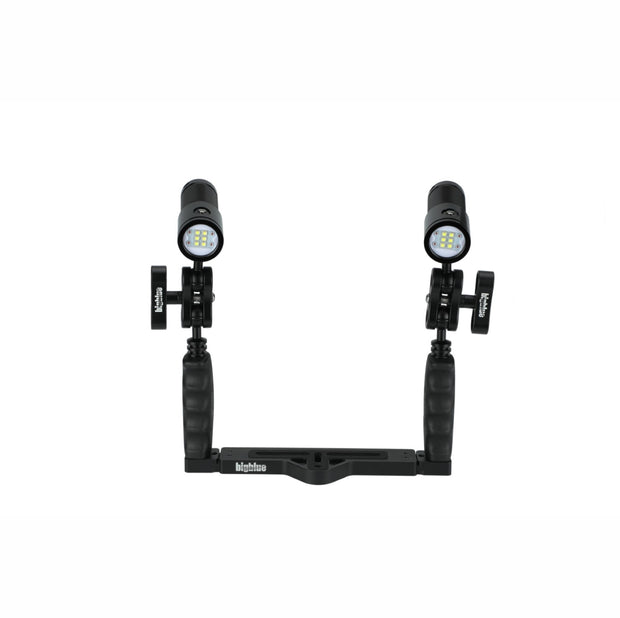

The Action Camera Tray Kit Set PRO is Bigblue’s brighter two-light rig. You get two VL4600P video lights, two CLIP-02 double clips and an extendable camera tray. Add your camera and housing, and you’re ready for reef video and stills.

Each VL4600P puts out 4600 lumens of 6500K light in a 120° wide, evenly diffused beam. Four red LEDs add 300 lumens for focusing and night video. White runs on four levels, 4600, 2300, 1150 and 460 lumens, for 1.5, 3, 6 and 15 hours. One push button with a battery indicator runs every mode.

Each light has its own rechargeable BATCELL32650 battery and USB charger. Bigblue suggests 7–8 hours for a full charge. The anodized aluminum bodies are tested to 100 m and weigh 318 g each with the battery.

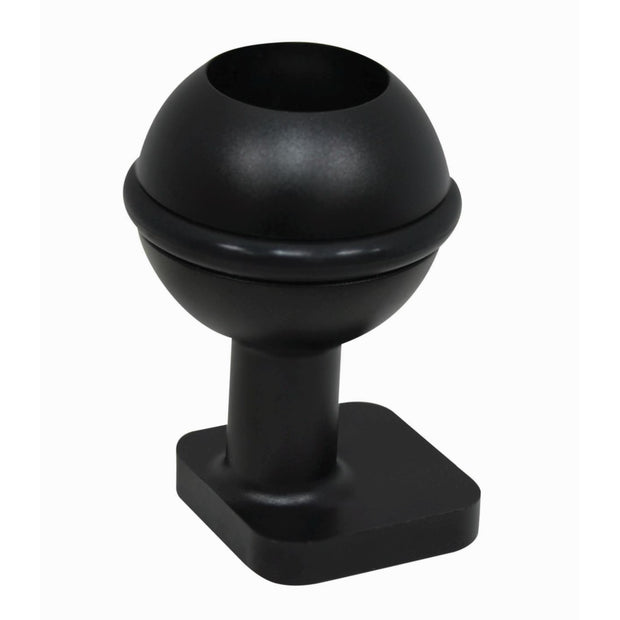

The tray has an aluminum base and handles, a neoprene grip on each handle and a 1-inch ball on top of each arm. It extends from 200 to 300 mm to suit different housings. A 1-inch ball mount goes on each light, and the double clips join the lights to the arms.

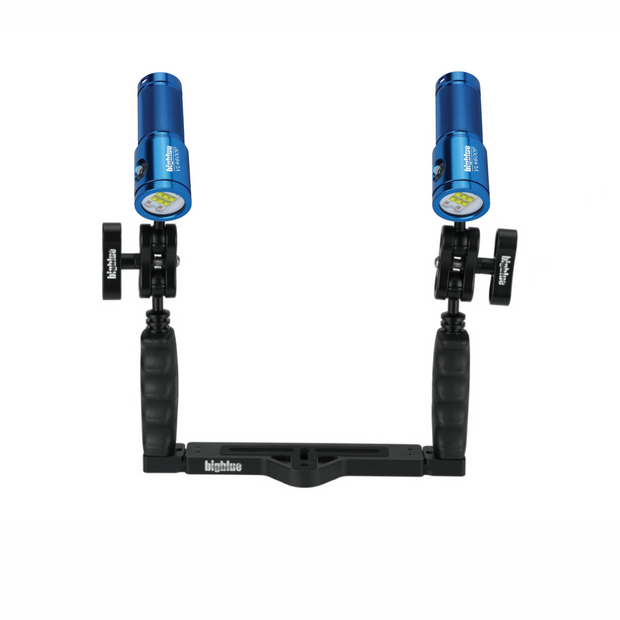

Bigblue designs its trays, arms and clips to work on their own or together, so this rig can grow with you. Choose both lights in high-gloss Classic Black, Royal Blue or Hot Pink.

Specifications
Kit
- Max output: 2 x 4600 lm
- Beam angle: 120° wide
- Burn time: 1.5–15 hrs
- Modes: + Red
- Lights in the kit: 2 x VL4600P
- Light colors: Both high-gloss Classic Black, Royal Blue or Hot Pink
- Camera and housing: Not included
- Bigblue category: Advanced photo and video

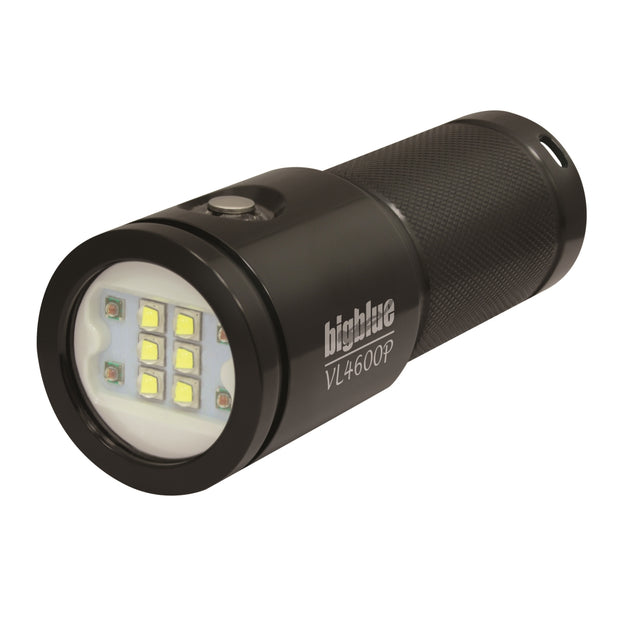

VL4600P (each light)
- Light source: 6 x XML LED + 4 x XPE red
- White levels: 4600 · 2300 · 1150 · 460 lm
- Red mode: 300 lm
- Color temperature: 6500K
- Beam: 120° wide, evenly diffused
- Burn time by level: 1.5 · 3 · 6 · 15 hrs (level IV to I)

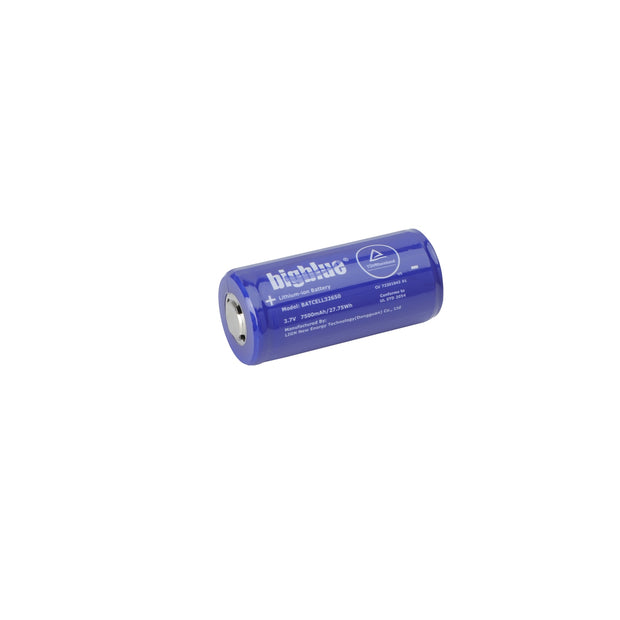

- Battery: BATCELL32650 Li-ion rechargeable

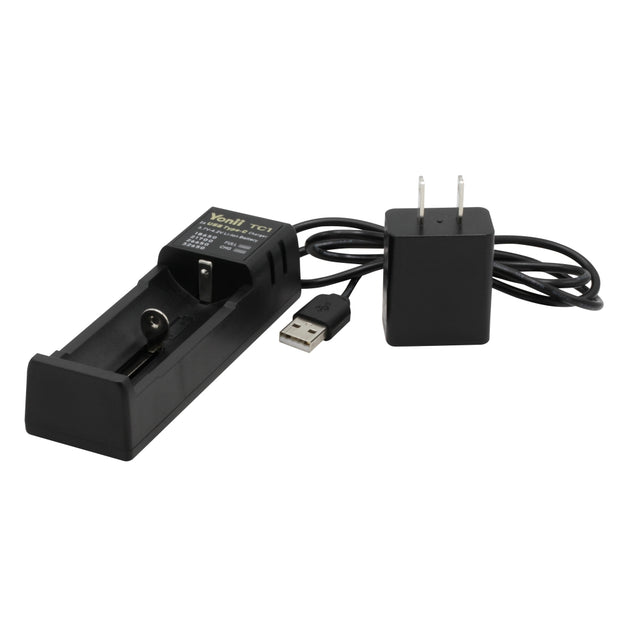

- Charger: USB charger
- Charge time: 7–8 hrs (Bigblue suggested)
- Switch: Push button with battery indicator
- Casing: Anodized aluminum alloy
- Front glass: Tempered optical glass
- Max depth: 100 m tested (328 ft)
- Size: Dia. 44 x L 121.1 mm (1.7 x 4.8 in)
- Weight in air: 318 g (11.2 oz) with battery
- Buoyancy in seawater: -167 g (-5.9 oz) with battery
- Light head: Modular Type IV

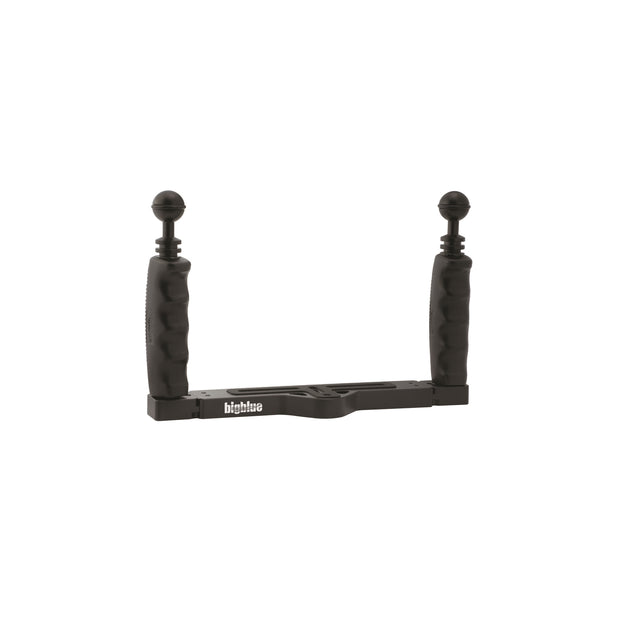

Tray and clips
- Tray: Extendable camera tray (BBEXTENDCAMTRAY)
- Tray width: Extends 200–300 mm (7.9–11.8 in)
- Handles: Neoprene grip, 1-inch ball on top of each arm
- Base and handles: Aluminum

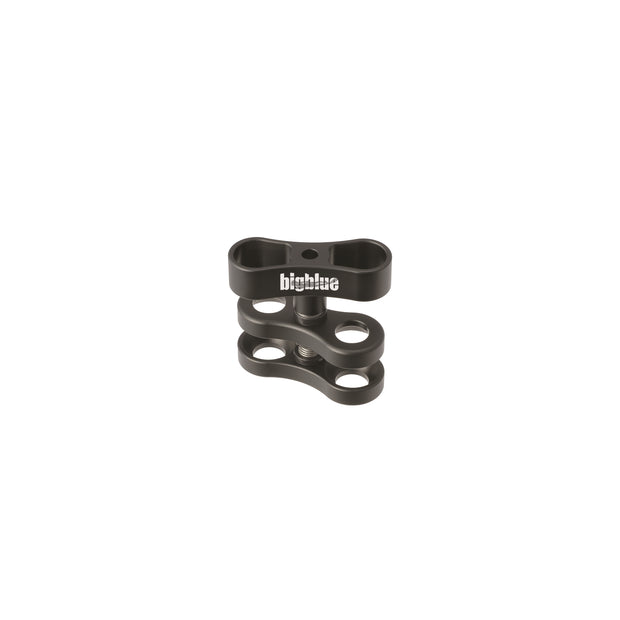

- Clips: 2 x CLIP-02 double clip, 64 mm (2.5 in) long
- Clip material: T6061 aluminum
