Bigblue CB16500PB-RC 16,500-Lumen RC-Ready Video Light, Blue & Red LED

$1,539.99
Max output
16,500 lm
Beam angle
160° wide
Burn time
1.5–6 hrs
Modes
+ Red & Blue

FREE 2-day delivery is available on this item

Verified by our in-house dive instructors
60-Day Money Back Return Policy 60-Day Money
Back Return
Policy
Limited Warranty 2 year coverage Limited
Warranty 2
Year Coverage

Description

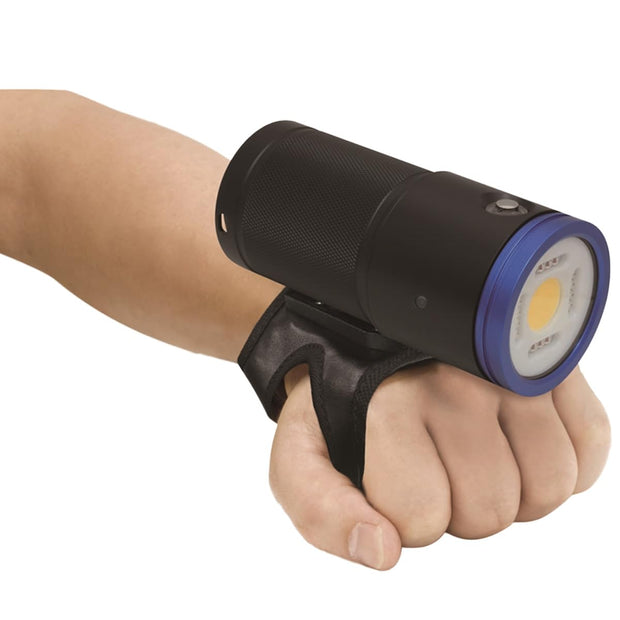

The CB16500PB-RC is Bigblue’s compact 16,500-lumen warm-white video light with built-in blue and red modes and a port for remote control. Bigblue calls it a sleek and compact fluorodiving solution. One high-intensity COB (chip-on-board) LED puts out 16,500 lumens of 5000K light in a 160° wide, evenly diffused beam, rated Ra 85 on the color rendering index.

White runs at three levels: 16,500, 8250 and 4125 lumens, for 1.5, 3 and 6 hours. Eight blue LEDs give 55, 110 or 220 lumens for fluoro, and the included yellow plate, made of yellow filter material, brings out coral fluorescence in your photos and video. Eight red LEDs give 1000 lumens of low-impact light for shy subjects.

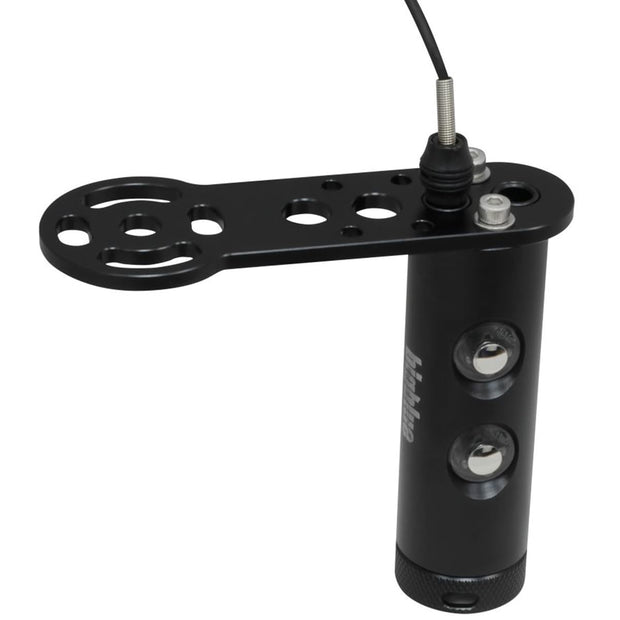

The light is remote-control ready. Bigblue’s Fibre Link Controller Kit Set (sold separately) mounts on your rig handle and connects over optical fibre, so you can power the light on and off and adjust settings without shifting your hands. One controller can run two lights, each on its own fibre. Want the kit in the box? Choose the CB16500PB-RCP.

Power comes from a BATCELL18650X7 Li-ion pack, with a push-button switch and battery indicator. The body is anodized aluminum with tempered optical glass, tested to 100 meters. It measures 70 x 142.5 mm and weighs 787 g in air. A lantern grip handle, 1-inch ball joint, lanyard and PC102A protective case are included.

What's Included?

  • CB16500PB-RC light
  • BATCELL18650X7 battery pack

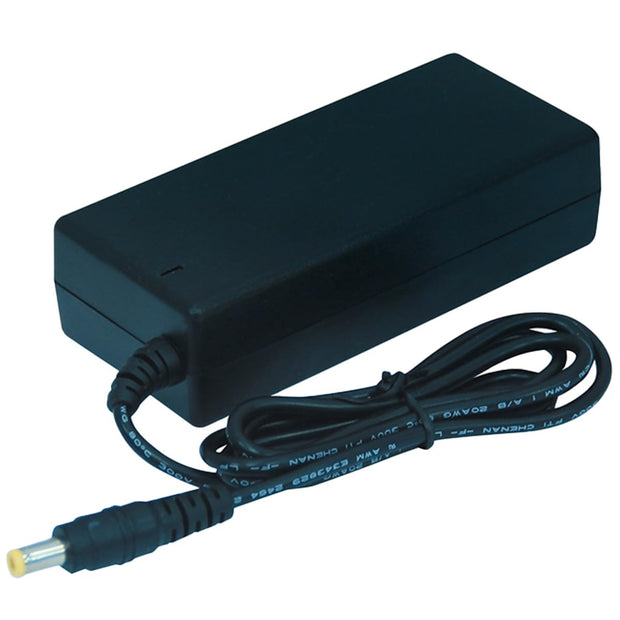

  • Charger

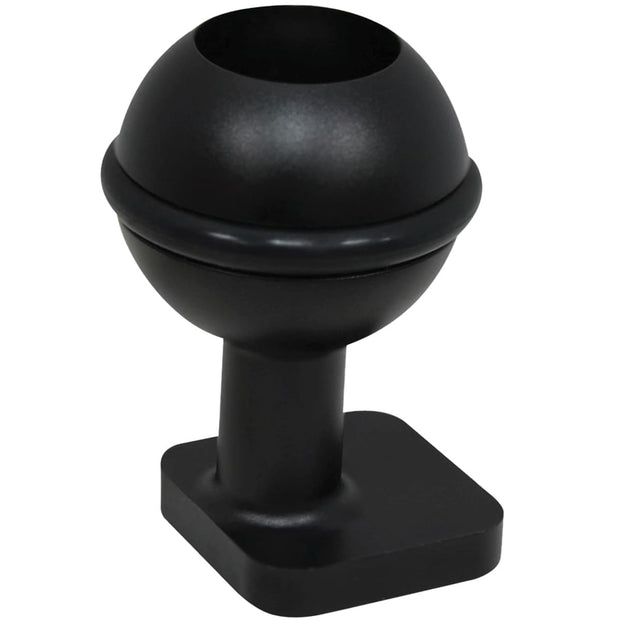

  • 1-inch ball joint
  • Lantern grip handle
  • Lanyard
  • Yellow plate
  • PC102A protective case
  • Two spare O-rings
  • Silicone lube
  • Dry bag
  • Owner’s manual

Your Dive, Our Priority

Get support from passionate diving experts dedicated to going the extra mile for you.

  • Troubleshooting a product issue
  • Finding the right setup for your dive
  • Installing components

Which CB16500 is right for you?

All three put 16,500 lumens of 5000K warm white (Ra 85) in a 160° beam, run on a BATCELL18650X7 pack and are 70 mm across.

CB16500P

Warm white plus red, with the longest burn time.

  • 4 white levels, 1650 to 16,500 lm
  • 1.5 to 15 hrs
  • 1000-lumen red mode
  • L 136 mm, 776 g

CB16500PB-RC

Adds blue for fluoro and a port for Bigblue’s fibre-optic remote.

  • 3 white levels, 4125 to 16,500 lm
  • 1.5 to 6 hrs
  • 1000-lumen red, 55–220-lumen blue
  • Yellow plate included
  • Remote kit sold separately
  • L 142.5 mm, 787 g

CB16500PB-RCP

The RC-ready light with the remote kit in the box.

  • Same light as the CB16500PB-RC
  • Fibre Link controller included
  • Optical fibre included
  • Switch and adjust from your rig handle

Is it right for you?

Who it’s for

  • Underwater videographers
  • Fluoro divers
  • Underwater photographers
  • Traveling shooters

Best for

  • Fluoro night dives
  • Remote-control rigs
  • Wide-angle video
  • Shy subjects in red mode

Power modes

ModeOutputBurn time
White III16,500 lm1.5 hrs
White II8250 lm3 hrs
White I4125 lm6 hrs
Red1000 lm—
Blue III220 lm—
Blue II110 lm—
Blue I55 lm—

Bigblue lists burn times for the white levels only.

Specifications

Output

Max output
16,500 lm
Modes
+ Red & Blue
Light source
1 x COB + 8 x XPE red + 8 x XPE blue LED
White levels
16,500 · 8250 · 4125 lm
Red mode
1000 lm
Blue mode
220 · 110 · 55 lm
Color temperature
5000K warm white
Color rendering index
Ra 85

Beam

Beam angle
160° wide
Beam type
Wide, evenly diffused

Power

Burn time
1.5–6 hrs
Battery
BATCELL18650X7 Li-ion pack
Burn time by level
1.5 · 3 · 6 hrs (level III to I)
Charge time
2–3 hrs (Bigblue suggested)
Switch
Push button with battery indicator
Remote control
RC-ready, remote kit sold separately

Build

Casing
Anodized aluminum alloy
Front glass
Tempered optical glass
Max depth
100 m tested (328 ft)
Size
Dia. 70 x L 142.5 mm (2.8 x 5.6 in)
Weight in air
787 g (27.8 oz) with battery
Buoyancy in seawater
-304 g (-10.7 oz) with battery
Mounting
Lantern grip handle and 1-inch ball joint included
Bigblue category
Tech photo and video

Product Details

Shipping & Returns
  • Free standard shipping on orders over $50
  • Free 2-day shipping on orders over $300
  • Standard Ground delivery in 3–5 business days
  • Most orders process within 1 business day
  • Free returns within 60 days — buyer covers return shipping unless it's our error
  • Free return shipping on exchanges

Start a Return →

Questions? Email info@sbaquatics.com or see our full Shipping & Returns Policy.

Frequently Asked Questions?

What does RC-ready mean?

The light has a port for an optical fibre cable. Add Bigblue’s Fibre Link Controller Kit Set and an optical fibre (both sold separately) to switch and adjust it from your rig handle. The CB16500PB-RCP is the same light with the kit included.

Can one controller run two lights?

Yes. Bigblue says a two-light setup needs one controller and two optical fibres. Fibres come in 1 m and 2 m lengths.

What powers the controller?

A CR2032 coin cell, per Bigblue’s battery chart.

How is it different from the CB16500P?

The CB16500P has four white levels, down to 1650 lumens for up to 15 hours, and red only. This light has three white levels (1.5 to 6 hours) and adds 8 blue LEDs, a yellow plate and the remote port.

Does it fit a Goodman handle?

Bigblue lists its Goodman Handle Series as an optional accessory for this light.
