Bigblue EOS23 Sidemount Battery Canister for Lights & Heat

Name: Bigblue EOS23 Canister - Sidemount
Brand: Bigblue Dive Lights
SKU: EOS SIDEMOUNT BK
Price: 1870.99 USD
Availability: InStock

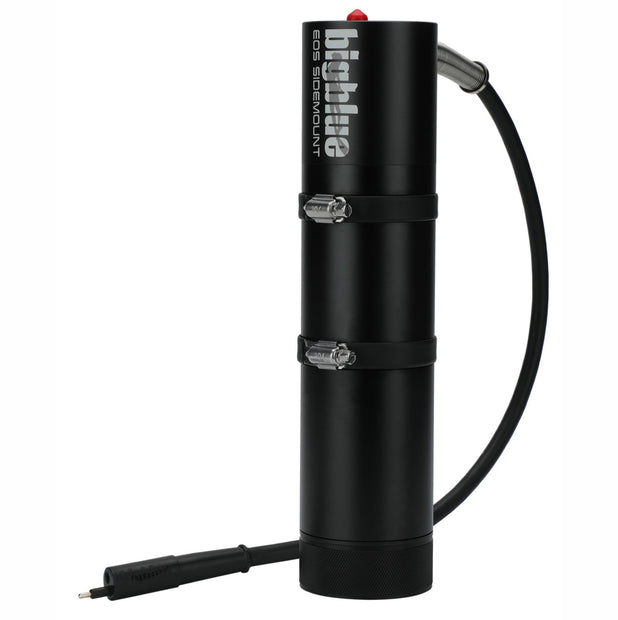

Bigblue EOS23 Canister - Sidemount, side view, in black

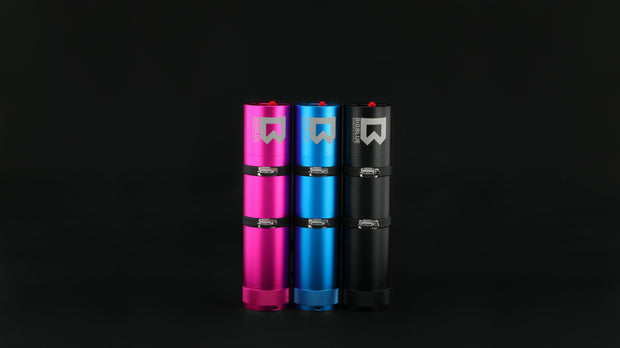

Bigblue EOS23 Canister - Sidemount, color options, side view

Verified by our in-house dive instructors

60-Day Money Back Return Policy 60-Day Money
Back Return
Policy

Limited Warranty 2 year coverage Limited
Warranty 2
Year Coverage

Description

The EOS23 Canister Sidemount is the power half of Bigblue’s EO canister system. It does not include a light head. Pair it with the TL4000P EO light head for a narrow-beam primary, or the VTL8000P Max EO light head for a dual-beam light; both are sold separately. Bigblue lists it as a Tech primary power source.

Inside are three BATCELLEOCANISTER Li-ion batteries of 88.06 Wh each, in a configuration Bigblue lists as airline approved. With the TL4000P EO head that means 12 hours at 4000 lumens and up to 120 hours at 400 lumens. With the VTL8000P Max EO head, the flood beam runs 8 to 32 hours.

The EOS23 has one cable and a mechanical on/off switch. Bigblue designed it to power more than a light: it can also supply heated gloves, vests and full heated undergarments from the Powered Heat Sync series. To run a light and heated gear at the same time, the EOD23 has two independent cables.

This is the sidemount version, set up for divers on a sidemount rig. The canister is 68 x 290 mm, weighs 2300 g with batteries and has a 0.65 m cable. The backmount version has the same specs. It is anodized aluminum alloy, tested to 150 meters.

A charger and a 15L outdoor dry bag are in the box. This listing is Classic Black; Bigblue also makes it in Royal Blue and Hot Pink.

EOS23 sidemount canister
Battery pack (3 x BATCELLEOCANISTER)
Charger
15L outdoor dry bag
Two spare O-rings
Silicone lube
Owner’s manual

Get support from passionate diving experts dedicated to going the extra mile for you.

Troubleshooting a product issue
Finding the right setup for your dive
Installing components

(805) 967-4456 info@sbaquatics.com

Product Features

Light head sold separately
Choose the TL4000P EO head (4000 lumens, 8° beam) or the VTL8000P Max EO head (8000-lumen flood plus a 3300-lumen spot).
Powers heated gear too
Beyond a light, the EOS23 can supply heated gloves, vests and full heated undergarments from Bigblue’s Powered Heat Sync series.
Airline-approved batteries
Three BATCELLEOCANISTER batteries of 88.06 Wh each, in a configuration Bigblue lists as airline approved.
Mechanical on/off switch
A simple mechanical switch on the canister end cap turns the power on and off.
Set up for sidemount
This version is built for a sidemount rig. The backmount version has the same specs.
Blind plug option
Bigblue’s blind plug, sold separately, protects the canister connector and pins from dirt, moisture and damage in transport.

EOS23, EOD23 or EOS12 canister?

None of the three includes a light head. All fit the TL4000P EO and VTL8000P Max EO heads, have a mechanical on/off switch and airline-approved batteries, come in backmount or sidemount, and are tested to 150 m.

EOS23 Canister

One cable for a light or heated gear.

3 x 88.06 Wh batteries
12–120 hrs with the TL4000P EO head
68 x 290 mm, 2300 g

EOD23 Canister

Two independent cables: a light and a heated vest at the same time.

3 x 88.06 Wh batteries
12–120 hrs with the TL4000P EO head
68 x 290 mm, 2415–2478 g

EOS12 Canister

One cable, compact canister. Patrick Widmann Signature Series.

3 x 50.32 Wh batteries
7–70 hrs with the TL4000P EO head
57 x 300 mm, 1650 g

Is it right for you?

Who it’s for

Technical divers
Cold-water divers
Expedition divers
Sidemount divers

Best for

Powering a primary light
Heated vest and gloves
Long cave dives

Burn time by light head

Head, level	Output	Burn time
TL4000P IV	4000 lm	12 hrs
TL4000P III	2000 lm	24 hrs
TL4000P II	1000 lm	48 hrs
TL4000P I	400 lm	120 hrs
VTL8000P flood III	8000 lm	8 hrs
VTL8000P flood II	4000 lm	16 hrs
VTL8000P flood I	2000 lm	32 hrs

Light heads sold separately. Bigblue’s figures for each head on the EOS23 canister; spot-beam burn times are not listed.

Add-ons

Specifications

Power

Battery: 3 x 88.06 Wh
Outputs: 1 cable
Burn time: 8–120 hrs
Air travel: Approved setup
Light head: Not included
Compatible light heads: TL4000P EO, VTL8000P Max EO
Power source: 3 x BATCELLEOCANISTER Li-ion, 88.06 Wh each
Airline travel: Airline-approved battery configuration
Burn time, TL4000P EO head: 12–120 hrs
Burn time, VTL8000P Max EO head: 8–32 hrs (flood beam)
Also powers: Heated gloves, vests and full heated undergarments
Charge time: 5–6 hrs (Bigblue suggested)
Switch: Mechanical on/off switch
Cable length: 0.65 m (2.1 ft)

Build

Mount: Sidemount configuration
Casing: Anodized aluminum alloy
Max depth: 150 m tested (492 ft)
Size: Dia. 68 x L 290 mm (2.7 x 11.4 in)
Weight in air: 2300 g (5.1 lb) with batteries
Buoyancy in seawater: -1186 g (-2.6 lb) with batteries
Color: Classic Black
Bigblue category: Tech primary

Product Details

Shipping & Returns

Free standard shipping on orders over $50
Free 2-day shipping on orders over $300
Standard Ground delivery in 3–5 business days
Most orders process within 1 business day
Free returns within 60 days — buyer covers return shipping unless it's our error
Free return shipping on exchanges

Start a Return →

Questions? Email info@sbaquatics.com or see our full Shipping & Returns Policy.

Frequently Asked Questions?

Does this include a light head?

No. The box has the canister, its battery pack, a charger and a 15L outdoor dry bag. Add the TL4000P EO or VTL8000P Max EO light head, or buy the complete TL4000P EOS23 system.

How long will it run?

It depends on the head. With the TL4000P EO head: 12 hours at 4000 lumens, 24 at 2000, 48 at 1000 and 120 at 400. With the VTL8000P Max EO head: 8, 16 or 32 hours on the flood beam.

Can I fly with it?

Bigblue lists the battery configuration as airline approved: three BATCELLEOCANISTER batteries of 88.06 Wh each. Check your airline’s rules before you travel.

How long does it take to charge?

Bigblue suggests 5–6 hours for the BATCELLEOCANISTER batteries.

EOS or EOD?

EOS canisters have one cable. The EOD23 has two independent cables, so it can run a light and a heated vest, or two lights, at the same time.
