Bigblue HL1000XW Dive Head Lamp, 1000 Lumens, Red Mode

Name: Bigblue HL1000XW 1000-Lumen Extra-Wide-Beam Head Lamp
Brand: Bigblue Dive Lights
SKU: HL1000XW
Price: 219.99 USD
Availability: InStock

Bigblue HL1000XW 1000-Lumen Extra-Wide-Beam Head Lamp, view 2

Bigblue HL1000XW 1000-Lumen Extra-Wide-Beam Head Lamp, view 3

Verified by our in-house dive instructors

60-Day Money Back Return Policy 60-Day Money
Back Return
Policy

Limited Warranty 2 year coverage Limited
Warranty 2
Year Coverage

Description

The HL1000XW is Bigblue’s rechargeable LED dive head lamp for hands-free diving. Two high-intensity LEDs put 1000 lumens of cool white light into a wide, even 120° beam. Bigblue pitches it for general lighting and as supplemental video light, and says it’s well suited to light work diving such as hull cleaning.

Two red LEDs give a separate 150-lumen red mode, which preserves your night vision.

The white beam has four brightness levels: 100, 250, 500 and 1000 lumens. Burn time is 2 hours at full power, 4 hours on level III, 8 hours on level II and 20 hours on level I. A body-mounted push button with a battery indicator runs everything.

Power comes from a rechargeable 18650 Li-ion battery, charged with the included USB charger. Bigblue suggests 3–4 hours to charge. The light head is aluminum alloy, the body is polycarbonate, the front glass is tempered optical glass, and it’s tested to 100 meters.

It ships on an adjustable head strap that fits most head sizes. For a helmet, Bigblue’s Dive Helmet Head Lamp Mount takes the HL series, sold separately. Bigblue lists the HL1000XW as a Tech primary light.

HL1000XW head lamp

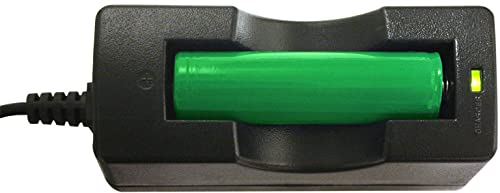

18650 battery
USB charger
Head strap

Get support from passionate diving experts dedicated to going the extra mile for you.

Troubleshooting a product issue
Finding the right setup for your dive
Installing components

(805) 967-4456 info@sbaquatics.com

Product Features

Wide 120° beam
Two high-intensity LEDs spread 1000 lumens of cool white light in a wide, even beam for general lighting and supplemental video light.
Red mode for night vision
Two red LEDs give 150 lumens of red light that preserves your night vision.

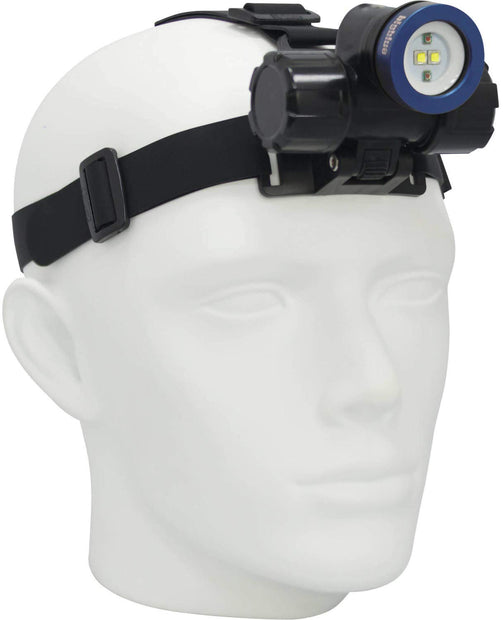

Hands-free on the strap
An adjustable head strap fits most head sizes and keeps both hands free. Bigblue calls it well suited to light work diving such as hull cleaning.
Four levels, up to 20 hours
Pick 100, 250, 500 or 1000 lumens. Burn time runs from 2 hours at full power to 20 hours on level I.
Rechargeable 18650
A rechargeable 18650 Li-ion battery and USB charger come in the box. The push button shows battery level.

Which HL1000 head lamp is right for you?

All three put out 1000 lumens on four levels, run 2 to 20 hours on a rechargeable 18650 battery, are tested to 100 m and come with a USB charger and head strap.

HL1000N

The narrow one. A focused 10° beam for precise, hands-free light.

10° narrow beam
4 levels plus SOS
205 g with battery
Takes the FILREDHLN red filter

HL1000XW

The wide one. A 120° flood for general light, with a red mode.

120° wide beam
4 levels plus a 150 lm red mode
207 g with battery
Bigblue: suits light work diving

HL1000XWN

Both beams. A 100° flood plus a 500-lumen 6° spot.

100° flood and 6° spot
4 flood levels, 500 lm spot
219 g with battery
Takes the FILYEL44 yellow filter

Is it right for you?

Who it’s for

Tech divers
Working divers
Night divers

Best for

Hands-free tasks
Hull cleaning
Supplemental video light
Night dives

Power modes

Mode	Output	Burn time
Level IV	1000 lm	2 hrs
Level III	500 lm	4 hrs
Level II	250 lm	8 hrs
Level I	100 lm	20 hrs
Red mode	150 lm	—

Bigblue doesn’t list a burn time for the red mode.

Add-ons

Specifications

Output

Max output: 1000 lm
Modes: + Red
Light source: 2 x CREE LED + 2 x XPE red LED
White levels: 100 · 250 · 500 · 1000 lm
Red mode: 150 lm
Color temperature: 6500K

Beam

Beam angle: 120° wide

Power

Burn time: 2–20 hrs
Burn time by level: 2 · 4 · 8 · 20 hrs (level IV to I)
Battery: 18650 Li-ion rechargeable
Charger: USB charger included
Charge time: 3–4 hrs (Bigblue suggested)
Switch: Body-mounted push button with battery indicator

Build

Casing: Aluminum alloy light head, polycarbonate body
Front glass: Tempered optical glass
Max depth: 100 m tested (328 ft)
Body size: Dia. 36.8 x L 84.4 mm (1.4 x 3.3 in)
Light head diameter: 38.8 mm (1.5 in)
Weight in air: 207 g (7.3 oz) with battery
Buoyancy in seawater: -76 g (-2.7 oz) with battery
Mounting: Adjustable head strap
Bigblue category: Tech primary

Product Details

Shipping & Returns

Free standard shipping on orders over $50
Free 2-day shipping on orders over $300
Standard Ground delivery in 3–5 business days
Most orders process within 1 business day
Free returns within 60 days — buyer covers return shipping unless it's our error
Free return shipping on exchanges

Start a Return →

Questions? Email info@sbaquatics.com or see our full Shipping & Returns Policy.

Frequently Asked Questions?

Can I mount it on a helmet?

Yes. Bigblue’s Dive Helmet Head Lamp Mount takes the HL450N, HL450XW, HL1000N, HL1000XW and HL1000XWN. The mount is sold separately.

How long does it take to charge?

Bigblue suggests 3–4 hours for the 18650 battery with the included USB charger.

Can I carry a spare battery?

Yes. Bigblue lists its BATCELL18650 battery for the HL1000 head lamps. Spare batteries are sold separately.

HL1000XW or HL1000N?

Both put out 1000 lumens on four levels with a 2–20 hr burn. The HL1000XW spreads it in a 120° wide beam and adds a 150-lumen red mode. The HL1000N focuses it into a 10° narrow beam and adds SOS.
