Bigblue TL5200P Backmount Canister Dive Light, 5200 Lumens

Name: Bigblue TL5200P 5200-Lumen Narrow-Beam Canister Light - Backmount
Brand: Bigblue Dive Lights
SKU: TL5200P-BACKMOUNT
Price: 1824.99 USD
Availability: OutOfStock

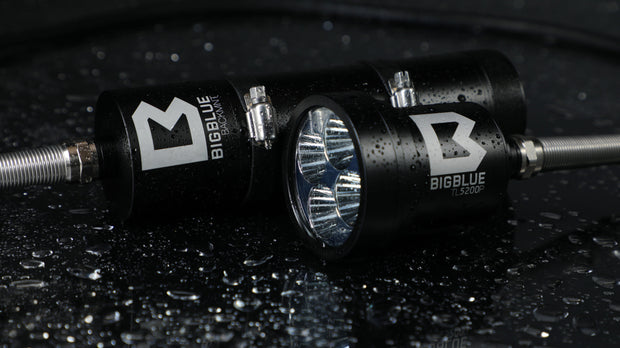

Bigblue TL5200P 5200-Lumen Narrow-Beam Canister Light - Backmount, rear view

Bigblue TL5200P 5200-Lumen Narrow-Beam Canister Light - Backmount, in use underwater, rear view

Verified by our in-house dive instructors

60-Day Money Back Return Policy 60-Day Money
Back Return
Policy

Limited Warranty 2 year coverage Limited
Warranty 2
Year Coverage

Description

The TL5200P Backmount is the canister version of Bigblue’s TL5200P technical light. The head puts 5200 lumens into a tight 7° beam for maximum penetration, with a smooth peripheral spill so you still see what’s around you. Bigblue lists it as a Tech primary light.

Moving the battery into a canister is what changes the dive. The BATCELLCANISTER Li-ion pack runs the light for 7 hours at 5200 lumens, 14 hours at 2600, 28 hours at 1300 and 70 hours at 520 lumens. The handheld TL5200P gives you 2 to 20 hours.

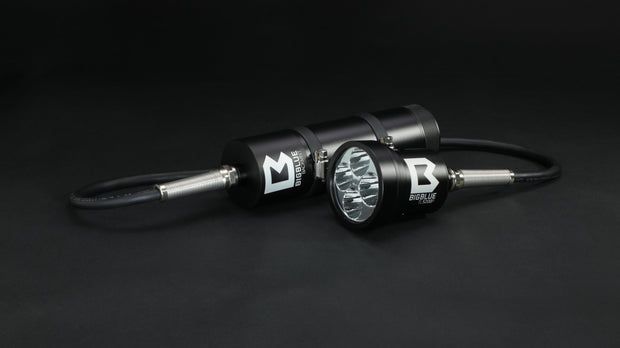

This is the backmount version. The canister measures 60 x 202 mm, weighs 975 g with the battery and connects to the head with a 1.2 m cable, set up for divers on a backmount rig. The sidemount version uses a 212 mm canister and a 1.35 m cable. Head, output and burn times are the same.

The light head is small: 72 x 88.3 mm and 380 g. One push-button switch with a battery indicator steps through all four levels. The Adjustable Goodman Handle in the box lets you wear the head on the back of your hand and keep both hands free.

Head and canister are anodized aluminum alloy with tempered optical glass, tested to 150 meters. A charger and a PC103A protective case are included.

TL5200P light head
BATCELLCANISTER battery pack
Backmount canister and cable
Charger
Adjustable Goodman Handle AJGHA-01C
Protective case PC103A
Two spare O-rings
Silicone lube
Owner’s manual

Get support from passionate diving experts dedicated to going the extra mile for you.

Troubleshooting a product issue
Finding the right setup for your dive
Installing components

(805) 967-4456 info@sbaquatics.com

Product Features

Tight 7° beam with a soft spill
5200 lumens in a 7° beam reaches far down a passage or wreck corridor. The smooth peripheral spill keeps your surroundings lit.
7 to 70 hours of burn time
The canister’s BATCELLCANISTER pack runs 7 hours at full power and 70 hours on level I. The handheld TL5200P runs 2 to 20 hours.
Set up for backmount
The 60 x 202 mm canister and 1.2 m cable are built for a backmount rig. The sidemount version has a 212 mm canister and a 1.35 m cable.
Small head on a Goodman handle
The head is only 72 x 88.3 mm and 380 g. Mount it on the included Adjustable Goodman Handle and keep both hands free.
Battery indicator on the switch
The push button on the head shows remaining charge, so you can plan the dive around what’s left.
Case included
The whole system packs into the PC103A protective case that comes in the box.

TL5200P: handheld, backmount or sidemount?

All three put 5200 lumens in a 7° beam, with four power levels, 6500K and a 150 m test depth.

TL5200P handheld

Battery inside the light. No canister, no cable.

2–20 hrs burn time
BATCELL18650X4 pack in the light
596 g with battery
Lantern grip handle and Goodman glove

TL5200P Backmount

Canister version set up for a backmount rig.

7–70 hrs burn time
Canister 60 x 202 mm, 975 g
1.2 m cable
Adjustable Goodman Handle

TL5200P Sidemount

Canister version set up for a sidemount rig.

7–70 hrs burn time
Canister 60 x 212 mm, 1033 g
1.35 m cable
Adjustable Goodman Handle

Is it right for you?

Who it’s for

Backmount divers
Cave divers
Technical divers
Tech primary light

Best for

Cave penetration
Wreck diving
Long technical dives

Power modes

Mode	Output	Burn time
Level IV	5200 lm	7 hrs
Level III	2600 lm	14 hrs
Level II	1300 lm	28 hrs
Level I	520 lm	70 hrs

Burn times are Bigblue’s figures for the BATCELLCANISTER battery.

Add-ons

Bigblue Canister Battery Cell

$439.99
View product

Specifications

Output

Max output: 5200 lm
Modes: 4 levels
Light source: 4 x LED
Power levels: 5200 · 2600 · 1300 · 520 lm
Color temperature: 6500K

Beam

Beam angle: 7° narrow
Beam type: Narrow spot with smooth peripheral spill

Power

Burn time: 7–70 hrs
Battery: BATCELLCANISTER Li-ion pack, in the canister
Burn time by level: 7 · 14 · 28 · 70 hrs (level IV to I)
Charge time: 2–3 hrs (Bigblue suggested)
Switch: Push button with battery indicator, on the head
Cable length: 1.2 m (3.9 ft)

Build

Mount: Backmount configuration
Casing: Anodized aluminum alloy
Front glass: Tempered optical glass
Max depth: 150 m tested (492 ft)
Light head size: Dia. 72 x L 88.3 mm (2.8 x 3.5 in)
Canister size: Dia. 60 x L 202 mm (2.4 x 8.0 in)
Light head weight in air: 380 g (13.4 oz)
Canister weight in air: 975 g (2.1 lb) with battery
Light head buoyancy in seawater: -134 g (-4.7 oz)
Canister buoyancy in seawater: -384 g (-13.5 oz) with battery
Bigblue category: Tech primary

Product Details

Shipping & Returns

Free standard shipping on orders over $50
Free 2-day shipping on orders over $300
Standard Ground delivery in 3–5 business days
Most orders process within 1 business day
Free returns within 60 days — buyer covers return shipping unless it's our error
Free return shipping on exchanges

Start a Return →

Questions? Email info@sbaquatics.com or see our full Shipping & Returns Policy.

Frequently Asked Questions?

What’s the difference between the backmount and sidemount versions?

How the canister fits your rig. The backmount version has a 60 x 202 mm canister (975 g) and a 1.2 m cable. The sidemount version has a 60 x 212 mm canister (1033 g) and a 1.35 m cable. Head, output and burn times are the same.

How long does it run on one charge?

7 hours at 5200 lumens, 14 hours at 2600, 28 hours at 1300 and 70 hours at 520 lumens.

How long does it take to charge?

Bigblue suggests 2–3 hours for the BATCELLCANISTER battery.

How is it different from the handheld TL5200P?

Same 5200 lumens and 7° beam. The handheld carries its BATCELL18650X4 pack inside the light and runs 2 to 20 hours. The canister version moves the battery to your rig and runs 7 to 70 hours.
